Ethicon Gen11

Description

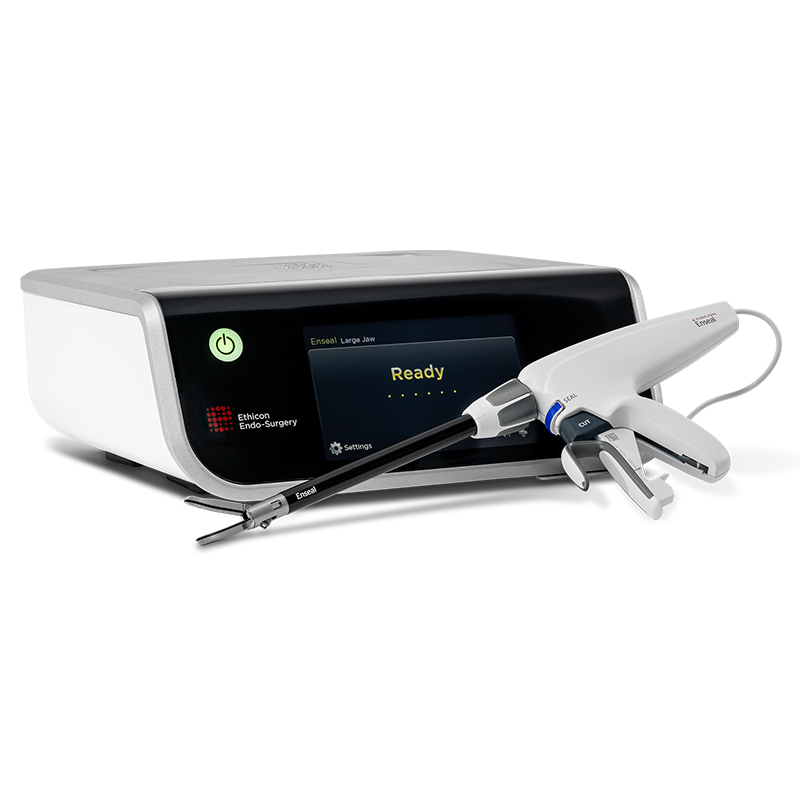

Ethicon Gen 11 Electrosurgical Unit: Pioneering Precision in Surgical Performance

Experience the future of surgery with the Ethicon Gen 11, where innovation meets precision and safety.

The Ethicon Gen 11 Electrosurgical Unit marks a significant advancement in surgical technology, offering unparalleled precision, control, and safety in a wide range of surgical procedures. Engineered with the latest innovations in electrosurgery, the Gen 11 is designed to support surgeons in achieving optimal outcomes, enhancing both efficiency and patient care in the demanding environment of the operating room.

Key Features and Benefits:

• Advanced Control System: The Ethicon Gen 11 features a sophisticated control system that allows surgeons to finely tune power settings for precise cutting and coagulation, adapting seamlessly to different tissue types and surgical needs.
• Enhanced Safety Features: With patient safety at its core, the Gen 11 incorporates built-in safety mechanisms, including real-time tissue monitoring and power adjustment, to reduce the risk of thermal injury and ensure the highest standards of care.
• Intuitive Interface: Designed with the user in mind, the Gen 11 boasts an intuitive interface that simplifies operation, allowing clinicians to easily select modes and settings, reducing setup time and streamlining the surgical workflow.
• Versatile Functionality: Capable of supporting a broad spectrum of surgical specialties, from general surgery to more specialized disciplines, the Gen 11 offers the flexibility and performance needed to tackle the most challenging procedures.

Specifications:

Dimensions (Generator)

• Height: 7.5 in (13.6 cm)
• Width: 14.8 in (35.5 cm)
• Depth: 13.7 in (35 cm)
• Weight: 13 lbs (5.9 kg)

Enseal Output

• Bipolar, no neutral electrode required
• 100 VAC RMS maximum
• 135 watts maximum (rated load 15 ohms, unless otherwise specified in the instrument IFU)
• 300 – 490 kHz (330 kHz, unless otherwise specified in instrument IFU)

Harmonic Output

• 150 VAC RMS maximum (Unless otherwise specified in the instrument IFU)
• 35 watts continuous (Unless otherwise specified in the instrument IFU)
• 30 – 80 kHz (55.5 kHz unless otherwise marked in instrument IFU)

Power

• Main Input: 100–240 V, 50/60 Hz, 500 VA
• Main Fuses: T5AL 250 V (Time-delay, 5 Amp, glass body, 5x20mm package size, quantity: 2)
