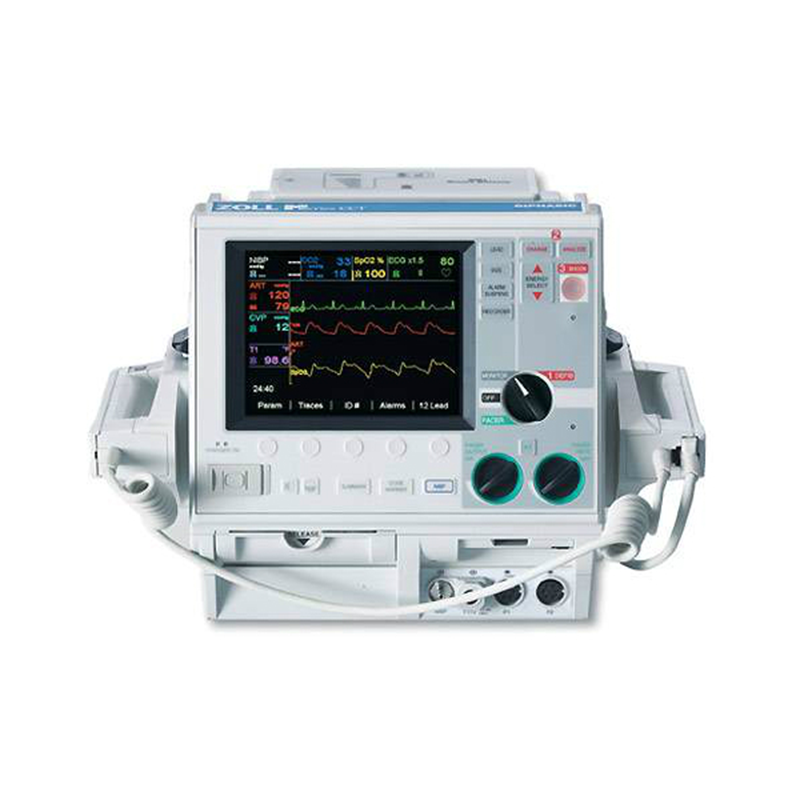

Zoll CCT Advisory Transport Defibrillator

Dimensions

With NIBP, IBP, Temp:

• Height: 10.2 in (25.9 cm)
• Width: 10.3 in (26.2 cm)
• Depth: 8.7 in (22.1 cm)

Without NIBP, IBP, Temp:

• Height: 8.6 in (21.8 cm)
• Width: 10.3 in (26.2 cm)
• Depth: 8.7in (22.1 cm)

Weight

• 17.2 lb ( 7.8 kg) with multi-function cable and battery
• 19.2 lb (8.71 kg) with above and Paddles</l/i>

AC Power

• 100-120 V, 50/60 Hz; 220-240 V, 50 Hz; 220 VA

Display Specifications

• Screen type: Active Matrix Color LCD
• Screen Size: 6.5 in (16.51 cm) Diagonal
• Number of Pixels: 640 x 480
• Sweep Speed: 5 mm/s
• Video Output: Industry standard VGA, 640 x 480, 60 Hz (optional)

Battery Specifications (XL Battery pack)

• Type: Rechargeable, sealed lead acid
• Weight: 3.7 lbs (1.68 kg)
• Voltage: 2 volts/cell; 5 cells wired in series
• Recharge Time: 7.2 hours or less with an integral charger
• Operating Time; For a new, fully charged XL
  the battery pack at 20°C: 60 defibrillator discharges at maximum energy (200 J), or 2.5 hours
  minimum of continuous ECG and SpO2 monitoring, or 1.5 hours of continuous ECG, SpO2, EtCO2, IBP, and Temperature monitoring/pacing at 60 mA, 70 beats per minute.

Environmental Specifications

• Operating Temperature: 32° to 122° F (0° to 50° C)
• Storage and Shipping Temperature: -4° to 140° F (-20° to 60° C),/li>
• Humidity: 5 to 95% relative humidity, non-condensing
• Vibration: Mil-Std 810 E, Minimum Integrity Tes
• Shock: IEC 68-2-27, 50g 6mS half-sine
• Operating Pressure: 594 to 1060 millibars

Defibrillator

Waveform

• ZOLL Rectilinear Biphasic. Energy Selection: Selectable at 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,
  15, 20, 30, 50, 75, 100, 120, 150, 200 joules. (Delivered into a 50-ohm load.) Charge Time: Less than 6 seconds with a
  new fully charged battery (first 15 charges to 200J.) Depleted batteries will result in a longer defibrillator charge time.
  Energy Display: The monitor display indicates both selected and delivered energy.

Synchronized Mode

• Synchronizes defibrillator pulse to the patient’s R-wave. The “SYNC” message is displayed on the monitor.
  The marker on display and recorder paper identifies the R-wave discharge point. Advisory Function: Single analysis or programmable
  auto re-analyze x3 with programmable auto energy level selection, screen prompts, and voice prompts. Charge
  Controls: Control on the apex paddle and on the device’s front panel. Paddles: External anterior/anterior adult and pediatric.
  Adult paddles slide off to expose pediatric paddles. Multi-Function Electrode (MFE) Pads: Specifically designed adult
  anterior/posterior pre-gelled ZOLL MFE Pads, and Multi-Function stat•padz™ packaged in pairs.
• Built-In Defibrillator Tester: Tests defibrillator energy output and continuity of universal cable and paddles; documented on PCMCIA card and strip chart.

Defibrillation Advisory

• Evaluate electrode connection and patient ECG to determine if defibrillation is required.
  Shockable Rhythms: Ventricular fibrillation with amplitude > 100 µV and wide complex ventricular tachycardia with rates
  greater than 150 bpm. Multi-Function Electrode Impedance Measurement.

Range

• 0-250 ohms

Display

Screen Type

• Color LCD. Screen Size: 6.5 inches (16.5 cm) diagonally. Sweep Speed: 25 mm/sec.

Viewing Time

• 4 seconds. Traces: 3. Information: Heart Rate, Lead/Pads, Alarm On/Off, Advisory Functions and
  Prompts, Defibrillator Test Function, Error Corrections and Faults, Code Markers, Alarm Selection, and Limits, Delivered
  Energy, SpO2, Pacer Functions, EtCO2, NIBP, Invasive Pressures (2), Temperature (2).

ECG Monitoring

Patient Connection

• 3-lead ECG cable, 5-lead ECG cable, 12-lead cable, paddles, or MFE Pads. Input selection on the front panel. Input Protection: Fully defibrillator protected. A special circuit prevents distortion of ECG by pacer pulse.
  (Pacer version only.) Implanted Pacemaker Spike Display: Dedicated circuitry detects most implanted pacemaker
  spikes and provides a standard display marker of the spike on ECG trace. Bandwidth: 0.5-40 Hz (-3 dB) standard/0.05-150
  Hz diagnostic. Lead Selection: Displayed on the monitor. ECG Size: 0.5, 1, 1.5, 2, 3 cm/mV – display on the monitor. Heart
  Rate: Digital display 0-300 bpm ±5%. Heart Rate Alarm: On/Off displayed on the monitor. User-selectable, tachycardia 60-
  280 bpm, bradycardia 20-100 bpm
