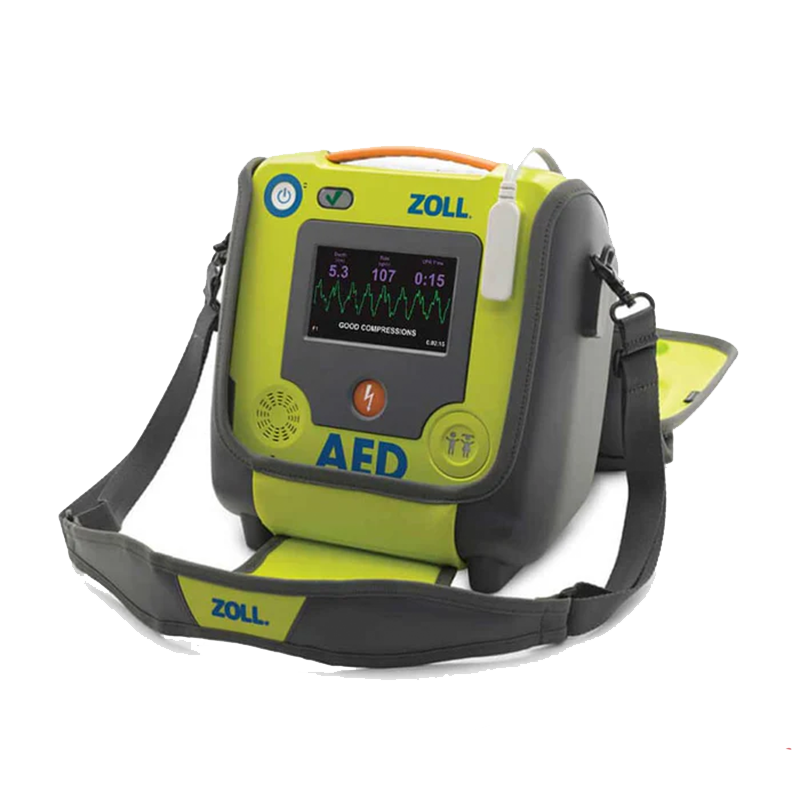

ZOLL AED 3 / AED 3 BLS

Elevate Cardiac Care with Advanced Defibrillation Technology

In the world of Automated External Defibrillators (AEDs), the ZOLL AED 3 BLS shines as a beacon of innovation and simplicity. Tailored to meet the needs of Basic Life Support (BLS) teams, this defibrillator combines cutting-edge technology with user-friendly design to ensure optimal performance in critical moments. Here’s why the ZOLL AED 3 BLS is the preferred choice for EMS professionals:

• User-Friendly Design for Quick Response: The ZOLL AED 3 BLS is engineered with an intuitive, high-resolution touchscreen, making it easy for responders to navigate during emergency situations. Clear voice prompts and visual cues provide step-by-step guidance, ensuring that even those with minimal training can operate the AED with confidence.
• Real CPR Help Technology for Precise Resuscitation: At the core of the ZOLL AED 3 BLS is Real CPR Help technology, offering real-time feedback on chest compression depth and rate. This critical feature empowers EMS professionals to deliver high-quality CPR, significantly improving the chances of a successful resuscitation.
• Dual-Language Functionality for Diverse Responders: The AED 3 BLS recognizes the diversity of EMS responders and offers dual-language functionality. Whether you prefer English or another language, the device accommodates your needs, ensuring clear communication during life-saving efforts.
• Seamless Connectivity for Swift Data Transmission: Equipped with Wi-Fi connectivity, the ZOLL AED 3 BLS allows for rapid and secure data transmission. Event data can be seamlessly shared with medical facilities, enabling timely analysis and informed decision-making.
• Rugged Durability for All Environments: Constructed to withstand real-world conditions, the AED 3 BLS is rugged and reliable, boasting a high IP rating that protects against dust and water exposure. This ensures dependable operation in various environments and situations.
• Configurable Options to Suit Your Protocols: The AED 3 BLS is highly customizable, offering a choice between fully automatic or semi-automatic electrode pads, allowing you to align the device with your specific protocols and preferences.
• Advanced Data Management for Continuous Improvement: Advanced software and data management capabilities enable comprehensive event documentation and reporting. Post-event data analysis supports continuous enhancement of EMS response procedures, ultimately elevating patient care.
• Trust in ZOLL’s Legacy of Excellence: With a legacy of innovation in defibrillation technology, ZOLL is a trusted name in healthcare. EMS professionals worldwide rely on ZOLL’s expertise to equip them with the tools they need to save lives.

Specifications

• Protocol:
  • Semiautomatic and Fully Automatic configuration
• Waveform:
  • ZOLL Rectilinear Biphasic™
• Defibrillator Charge Hold Time:
  • 30 seconds;
  • ZOLL AED 3 Automatic model: 3 seconds prior to automatic shock delivery
• Energy Selection:
  • Factory preprogrammed selection
  • Adult: 120 J, 150 J, 200 J
  • Child: 50 J, 70 J, 85 J
• Patient Safety:
  • All patient connections are electrically isolated
• Charge Time:
  • Less than 10 seconds with a new battery
• Pre-shock Pause:
  • Less than 5 seconds with RapidShock Analysis (semi-automatic)
  • Less than 8 seconds (automatic) with a new battery
• Electrodes:
  • ZOLL CPR Uni-padz®
• Self-test:
  • Configurable automatic self-test every day or every 7 days. Default: every 7 days.
  • Monthly full-energy test (200 J).
• Automatic Self-test Checks:
  • Battery capacity, status, and expiry
  • Electrode connection and expiry
  • ECG and charge/discharge circuits
  • Microprocessor hardware and software
  • CPR circuitry and pads sensor
  • Audio circuitry
• Compression Depth:
  • 1.9 cm to 10.2 cm
  • 0.75 in to 4 in
• Defibrillation Advisory:
  • Evaluates defibrillation pad connection and patient ECG to determine if defibrillation is required.
• Shockable Rhythms:
  • Ventricular fibrillation with an average amplitude >100 microvolts
  • Wide complex ventricular tachycardia with rates greater than 150 BPM for adults, 200 BPM for pediatrics.
• Patient Impedance Measurement Range:
  • 10 to 300 ohms
• Display Format:
  • High-resolution LCD with capacitive touch panel
• Display Screen Size:
  • 5.39 cm x 9.5 cm; 2.12 in x 3.74 in
• Data Recording and Storage:
  • User-configurable for 1 or 2 clinical events for a total of 120 minutes for each event. Includes ECG, impedance measurements, device prompts, and CPR data.
• Data Recovery:
  • Controlled by touchscreen, uploaded to USB memory stick, or ZOLL Case Review™ over a Wi-Fi network
• Device Size:
  • (H x W x D) 12.7 cm x 23.6 cm x 24.7 cm; 5.0 in x 9.3 in x 9.7 in
• Weight:
  • 2.5 kg; 5.5 lbs (with battery)
• Power:
  • Battery
• WiFi-enabled devices:
  • Wireless 802.11 a/b/g/n; Security Protocols, WPA1, WPA 2, WPA Personal, WPA Enterprise; Internal Clock Synchronization: Coordinated Universal Time (UTC) synchronization occurs when communicating with the ZOLL Online server.
• Rescue Accessory Pack Contents:
  • Non-latex gloves, a CPR barrier mask, razor, paper towel, and towelette.
• Device Classification:
  • Class II and internally powered per EN60601-1
• Design Standards:
  • Meets applicable requirements of EN 60601-1, IEC 60601-1-11, IEC 60601-2-4
• Environmental Operating Temperature:
  • 0° to 50°C; 32° to 122°F
• Storage Temperature:
  • -30° to 70°C; -22° to 158°F
• Humidity:
  • 10% to 95% relative humidity, non-condensing
• Vibration:
  • IEC 60068-2-64, Random, Spectrum A.4, Table A.8, Cat 3b; RTCA/DO-160G, Fixed Wing Aircraft, Section 8.6, Test Cat. H, Aircraft Zone 1 and 2, EN 1789, Sweep per EN 60068-2-6 Test Fc
• Shock:
  • IEC 60068-2-27; 100G
• Altitude:
  • -381 m to 4573 m; -1250 to 15,000 ft
• Particle and Water Ingress:
  • IP55
• Drop Test:
  • 1 meter; 3.28 feet
• Battery Battery Capacity:
  • Typical new battery running at an ambient temperature of +20° C to +25° C (68° F to 77° F) can provide:
    • 140 defibrillator discharges at maximum energy (200 joules), or
    • 6 hours of continuous monitoring (with 2-minute CPR periods)
    • Note: CPR periods shorter than 2 minutes can decrease the operating time that can be obtained from a new battery.
• Battery Type:
  • Disposable, sealed lithium manganese dioxide
• Battery Standby Life (once installed):
  • 5 years with weekly self-test*. End of life indicated by blank status window (typical remaining shocks: 9).
• Battery Shelf Life:
  • Store for up to 2 years at 23°C (77°F) prior to installing in ZOLL AED 3 to maintain above battery life.
• Battery Temperature:
  • 0°C to 50°C (32°F to 122°F)
• Battery Humidity:
  • 10% to 95% (non-condensing)
• Battery Weight:
  • 317.5 grams; 0.7 lbs
• Battery Size:
  • (H x W x D) 27.75 mm x 133 mm x 88 mm; 1.0 in x 5.16 in x 3.5 in
• Battery Nominal Voltage:
  • 12 volts

1Snyder DE, et al. Crit Care Med. 2004;32(9) Supplement:S421-S424.
2AHA Guidelines for resuscitation 2015. Resusitation:2015;Sec 8.5
*Battery standby life will be shorter in areas with low WiFi signal strength and/or more complex WiFi authentication protocols.
Specifications subject to change without notice.
