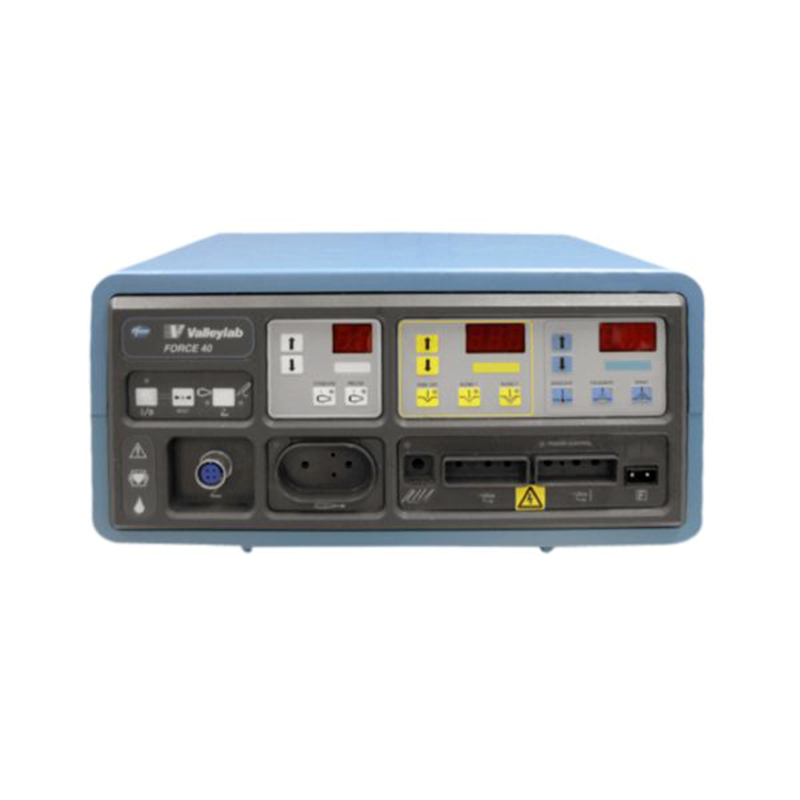

Valleylab Force 40 / Electrosurgical Unit

Description

Enhance Surgical Precision with the Valleylab Force 40 ESU / Electrosurgical Unit

In the world of modern surgery, precision and control are paramount. Surgeons rely on advanced tools and equipment to ensure successful procedures with minimal risks. The Valleylab Force 40 Electrosurgical Unit (ESU) stands at the forefront of surgical technology, offering unparalleled precision, versatility, and safety for a wide range of surgical applications.

Unmatched Surgical Precision The Valleylab Force 40 ESU incorporates state-of-the-art technology to provide surgeons with the highest level of precision during procedures. With its innovative design and advanced waveform technology, this electrosurgical unit allows for controlled tissue cutting, coagulation, and desiccation, ensuring minimal damage to surrounding tissues.

Customizable Output One of the standout features of the Valleylab Force 40 is its customizable output settings. Surgeons can tailor the energy output to match the specific requirements of each procedure, offering flexibility and adaptability in the operating room. Whether you’re performing delicate microsurgeries or more complex procedures, the Valleylab Force 40 has you covered.

Safety First Patient safety is of utmost importance, and the Valleylab Force 40 ESU prioritizes safety at every turn. The device is equipped with advanced safety features, including automatic self-checks, error detection, and alarms, providing both surgeons and surgical teams with peace of mind.

Intuitive User Interface Designed with the end user in mind, the Valleylab Force 40 features an intuitive user interface that streamlines the surgical process. The easy-to-use touchscreen display allows for quick adjustments and real-time monitoring, reducing the likelihood of errors and ensuring efficient procedures.

Versatility in Surgical Settings The Valleylab Force 40 ESU is a versatile tool that can be used in a variety of surgical settings, from general surgery to specialty procedures. Its compatibility with a wide range of electrosurgical accessories makes it a valuable addition to any operating room.

Specifications:

General

• Automatic activation impedance 40-100ohms
• Automatic deactivation impedance: <20ohms, >2000ohms
• Time delay range: .1 to 5.1 seconds
• Activation tone: 45 to 65 dBA

• Alarm Tone: >65 dBA
• Weight: 20 lbs (9.1 kg)
• Dimensions: 7.8 (H) x 16.1 (W) x 11.9 (D) inches (199 x 409 x 303 mm)
• Operates on 110/240V, 50/60Hz

Output Waveform

• Cut: 500kHz sinusiod
• Blend 1: 500kHz bursts of sinusiod @ 50% duty cycle, recurring @ 31.25 kHz
• Blend 2: 500kHz bursts of sinusiod @ 37.5% duty cycle, recurring @ 31.25 kHz
• Desiccate: 500kHzdamped sinusiodal burst with a repetition frequency of 250 kHz

• Fulgurate: 500kHz damped sinusiodal burst with a repetition frequency of 62.5 kHz
• Spray: 500kHz damped sinusiodal burst with a repetition frequency of 31.25 kHz
• Standard Bipolar: 500kHz sinusiod
• Precise Bipolar: 500kHz sinusiod

Output Characteristics

• Cut: Max P-P 3300, Rate Load 300, Max Power 300, Crest Factor 2.1 @ 100W
• Blend 1: Max P-P 3800, Rate Load 300, Max Power 250, Crest Factor 2.1 @ 100W
• Blend 2: Max P-P 4000, Rate Load 300, Max Power 200, Crest Factor 2.1 @ 100W
• Desiccate: Max P-P 3500, Rate Load 300, Max Power 200, Crest Factor 2.1 @ 100W

• Fulgurate: Max P-P 6500, Rate Load 300, Max Power 150, Crest Factor 2.1 @ 100W
• Spray: Max P-P 9000, Rate Load 300, Max Power 150, Crest Factor 2.1 @ 100W
• Standard Bipolar: Max P-P 550, Rate Load 100, Max Power 50, Crest Factor 2.1 @ 100W
• Precise Bipolar: Max P-P 550, Rate Load 100, Max Power 50, Crest Factor 2.1 @ 100W
