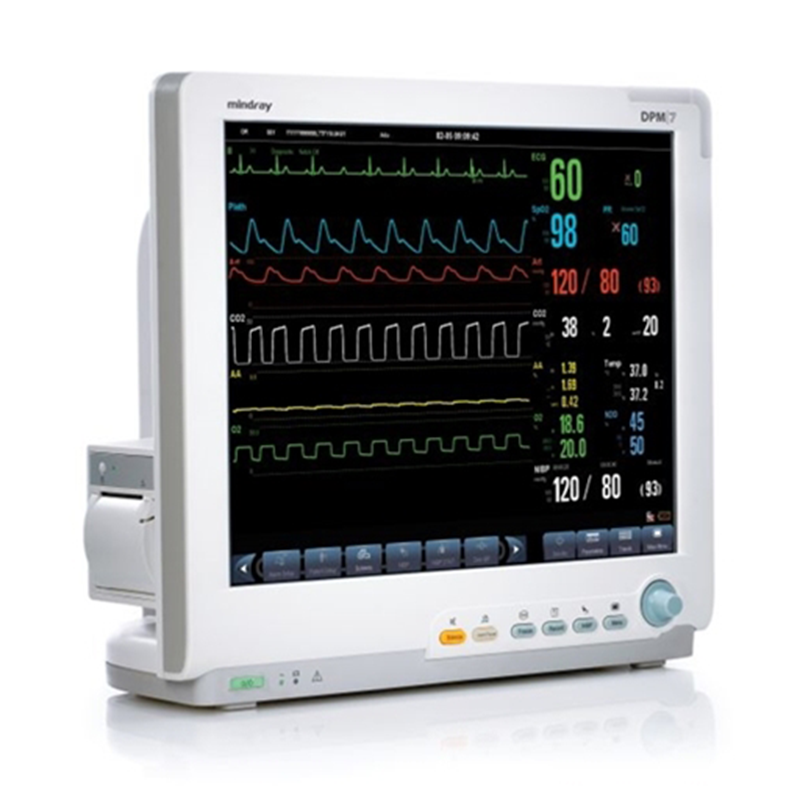

Mindray DPM7 Patient Monitor
In the realm of patient care, the ability to monitor vital signs accurately and efficiently is paramount. The Mindray DPM7 Patient Monitor stands as a beacon of technological advancement, offering an all-encompassing monitoring solution that combines accuracy, versatility, and ease of integration. With its cutting-edge features and intuitive design, the DPM7 empowers healthcare providers to deliver superior patient care.
Key Features and Benefits
- Extensive Monitoring Capabilities: The DPM7 excels with a broad range of monitoring parameters, including ECG, non-invasive blood pressure (NIBP), SpO2, temperature, respiratory rate, invasive blood pressure (IBP), and CO2, ensuring comprehensive patient oversight.
- Advanced Display Technology: Featuring a large, high-resolution touchscreen display, the DPM7 offers exceptional clarity and detail for critical patient data, with customizable interfaces to meet the specific needs of each clinical scenario.
- Seamless Connectivity: Engineered for modern healthcare environments, the DPM7 boasts advanced connectivity options for effortless integration with Electronic Medical Records (EMR) systems, streamlining data management and improving documentation accuracy.
- User-Focused Design: With its user-friendly navigation and quick-access controls, the DPM7 is designed to enhance operational efficiency, reducing the time healthcare providers spend on equipment operation and allowing more focus on patient care.
The Mindray DPM7 Patient Monitor is a testament to Mindray’s commitment to innovation in healthcare technology. Its comprehensive monitoring capabilities, combined with its ease of use and integration, make it an invaluable asset for any medical facility committed to advancing the standard of patient care.
Specifications
Dimensions
- 14.6” (370 mm) H x 15.7” (400 mm) W x 7.6” (193 cm) D
- Weight: > 31.9 lbs (14.5 kg) including display, MPM, AG module, 2 lithium batteries, recorder, CF components
- Display: 17” (432 mm)
- Power Supply: 1 AC power connector
- Network: 2 RJ45 network connectors, 100 BASE-TX
- Video: 1 standard DVI-D video interface connector
- Auxiliary output: 1 BNC connector
- Equipotential: 1 equipotential grounding connector IEEE 802.11g Wi-Fi compatible
Environmental
- Operating Atmospheric Pressure: 425 – 809 mmHg, 430 – 795 mmHg (Microstream CO2 module), 428 – 790 mmHg (Sidestream CO2 module), 525 – 900 mmHg (AG module)
- Operating Temperature: 41° – 104°F (5° to 40°C), 32° – 104°F (0°C to 40°C) Microstream CO2 module, 41° – 95°F (5°C to 35°C) Sidestream CO2 module, 50° – 104°F (10°C to 40°C) AG Module
- Operating Humidity: 15% to 95%, non-condensing
- Storage Atmospheric Pressure: 120 – 809 mmHg, 430 – 795 mmHg (Microstream CO2 module), 428 – 790 mmHg (Sidestream CO2 module), 525 – 900 mmHg (AG module)
Inspiration time (Ti)
- 0.11 to 10 s (adults)
- 0.1 to 10 s (pediatric patients, neonates)
Power
- Input Voltage: 100 to 240VAC
- Current: 2.8 to 1.6A
