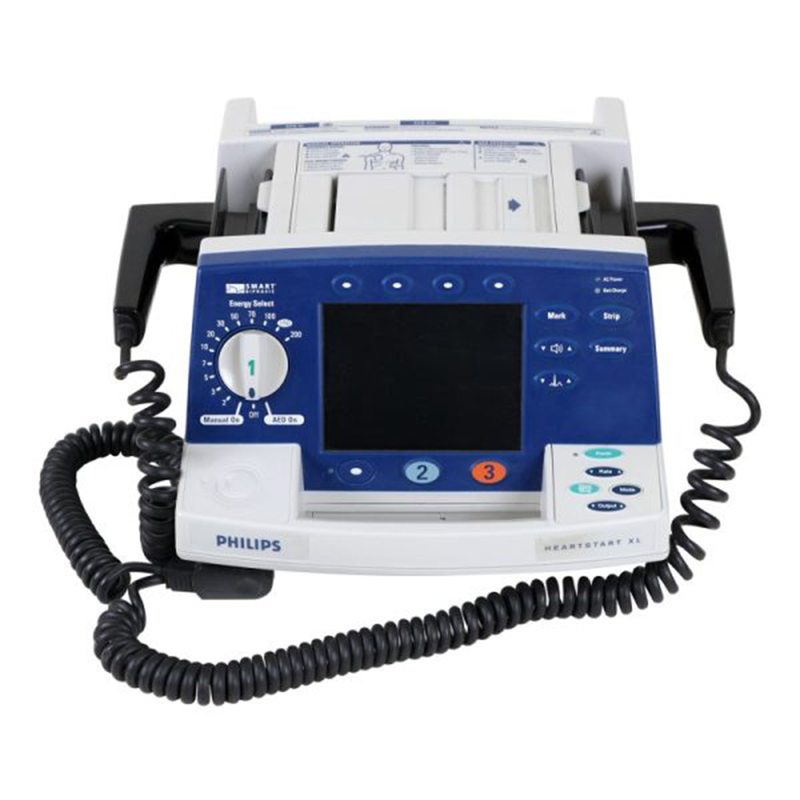

Philips Heartstart XL Biphasic Defibrillator

Equip your medical team with the Philips HeartStart XL Defibrillator, a reliable and advanced solution for cardiac care, and be prepared for any cardiac emergency that comes your way.

Questions About This Product?

Our representatives are waiting to answer any questions you may have.

Philips Heartstart XL Biphasic Defibrillator

Description

Introducing the Philips HeartStart XL Biphasic Defibrillator: Your Lifesaving Cardiac Care Companion

Portable and Versatile:

Weighing in at just under 14 pounds (6.35kg), the Philips HeartStart XL Biphasic Defibrillator is a lightweight powerhouse, ready to be transported swiftly to the point of cardiac care within a hospital. This versatile device combines the capabilities of both a manual device and an automated external defibrillator (AED), making it the go-to choice for the first responder, whether they are an Advanced Cardiac Life Support (ACLS) or Basic Life Support (BLS) clinician.

Guided AED Mode:

In AED mode, the HeartStart XL provides clear and concise voice prompts and text messages that expertly guide BLS users through the defibrillation process. Meanwhile, it continuously monitors and displays the patient’s electrocardiogram (ECG) to ensure comprehensive care.

Seamless Transition to Manual Mode:

When ACLS personnel arrive, the HeartStart XL effortlessly transitions from AED to manual mode, granting access to its advanced therapeutic features. These include selectable energy levels ranging from 2 to 200 Joules, optional non-invasive pacing, optional SpO2 monitoring, and synchronized cardioversion.

Key Features:

  • Manual and AED operation
  • ECG monitoring with pads or electrodes
  • Selectable limits and alarms
  • Electroluminescent display
  • 50 mm strip chart printer
  • Data storage/event summary
  • SMART Biphasic waveform for defibrillation

Benefits:

  • SMART Biphasic Technology: Proven superior for efficacy and minimizing post-defibrillation heart dysfunction.
  • Impedance Compensation: Delivers a customized low-energy shock based on the patient’s unique requirements
  • Quick Charging: Charges to the highest energy level (200 Joules) in less than 3 seconds.
  • Synchronized Cardioversion: Effectiveness demonstrated for cardioversion of atrial fibrillation.
  • Easy to Use: Intuitive 1-2-3 operation, AED mode with voice and text prompts, and versatile paddles and pads.
  • Data Management and Reporting: Store and manage patient data effortlessly, including continuous ECG and event records.
  • Lightweight, Compact, Durable: Easy to transport, fits on a standard hospital stretcher, and built to withstand hospital use.
  • Service Solutions: Multiple warranty options for your peace of mind.
  • Dependability: Part of the trusted Philips resuscitation product family with over 30 years of use by healthcare providers.

Equip your medical team with the Philips HeartStart XL Defibrillator, a reliable and advanced solution for cardiac care, and be prepared for any cardiac emergency that comes your way.

Specifications

Dimensions:

  • Width: 14.8 in/37.6 cm
  • Depth: 13.7 in/34.6 cm
  • Height: 7.5 in/19 cm
  • Weight: 13.3 lbs/6.0 kg, including battery and full roll of paper

Display Screen:

  • Type: LCD – TFT Color Liquid Crystal Display
  • Size: 111.4 mm x 83.5 mm
  • Resolution: 320 x 240 pixels
  • Sweep Speed: 29 mm/s nominal (stationary trace; sweeping erase bar)
  • Viewing Time: 4 seconds

Battery:

  • Type: 2 Ah, 12V, rechargeable, Sealed Lead Acid
  • Weight: 1.4 lbs/0.65 kg
  • Charge Time: Approximately 14.5 hours to 100%. Approximately 3 hours to 90%, indicated by LED on front panel.
  • Capacity: 100 minutes ECG monitoring or 50 full-energy discharges or 75 minutes ECG monitoring while pacing (with a new, fully charged battery at room temperature, 25º C)
  • Battery Indicators: LOW BATTERY message appears on display when at least 10 minutes of monitoring time and 5 maximum energy discharges remain (with a new battery at room temperature, 25º C)
  • Stoarge: Should not be stored above 40ºC for extended periods of time
  • Charger Output: Unit can be operated using only AC Power, with no battery installed

Defibrillator:

  • Waveform: Biphasic Truncated Exponential. Waveform parameters adjusted as a function of patient impedance
  • Shock Delivery: Via multifunction defib electrode pads or paddles
  • Charge Time: Less than 3.5 seconds to 200 Joules with a new, fully charged M3516A SLA battery pack at 25ºC; Less than 15 seconds to 200 Joules when powered by AC with no battery installed
  • Patient Impedance Range: Minimum – 15 Ohm (internal defibrillation); 25 Ohm (external defibrillation); Maximum – 180 Ohm

SpO2 Pulse Oximetry:

  • Wavelength Range: 500 – 1000 nm
  • Resolution: 1%

ECG Monitoring:

  • Inputs: Single channel ECG may be viewed on display and printed. Pads ECG is obtained through 2 multifunction defibrillation electrode pads. Lead I, II, or III is obtained through the 3-lead ECG cable and separate monitoring electrodes. With a 5-lead cable, lead aVR, aVL, aVF, and any one of the V (1-6) leads can also be obtained.
  • Lead Fault: LEADS OFF message and dashed line appear on the display if an electrode or lead wire becomes disconnected.
  • Paddle Fault: NO PADDLES CONNECTED message and dashed line appear on the display if paddles become disconnected
  • Pad Fault: NO PADDLES CONNECTED message and dashed line appear on the display if paddles become disconnected
  • Heart Rate Display: Digital readout on display from 15 to 300 bpm, with an accuracy of ±10%.
  • Heart Rate Alarms: Configurable pairs of low and high heart rate alarm limits: 30 to 100, 60 to 140, 90 to 160 and 120 to 200 bpm.
  • ECG Size: 2.5, 5, 10, 20, 40 mm/mV
