Description

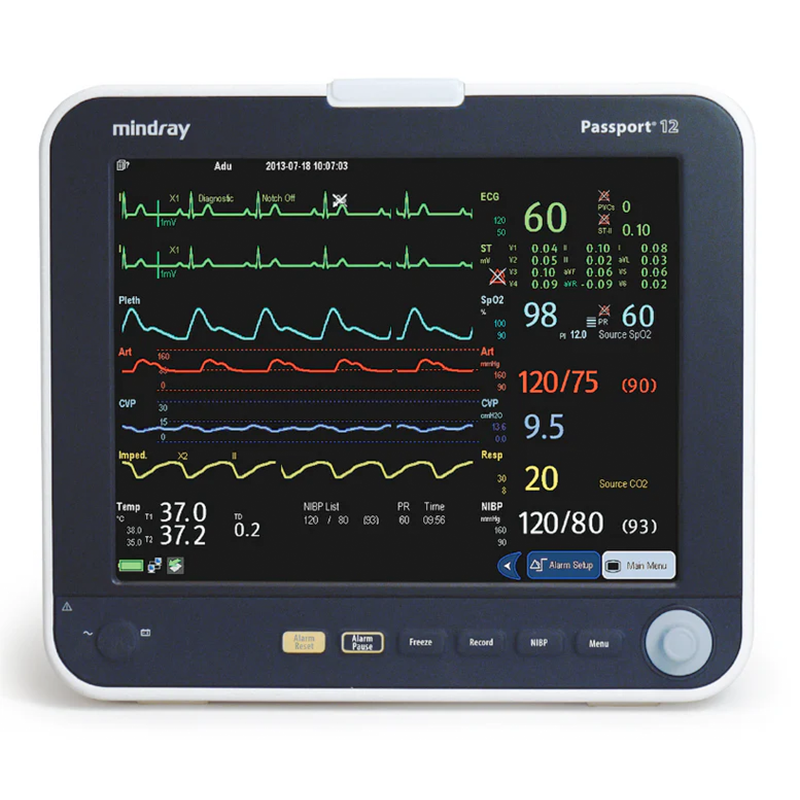

Mindray Passport 12 Patient Monitor: Overview and Features
The Mindray Passport 12 Patient Monitor exemplifies Mindray’s commitment to innovation and quality in healthcare technology. Offering a blend of advanced monitoring functions, user-friendly design, and seamless integration capabilities, it represents an invaluable tool for enhancing patient care and operational efficiency in medical facilities worldwide.
Comprehensive and Advanced Monitoring
- Wide Range of Parameters: Equipped to monitor vital signs including ECG, NIBP, SpO2, respiratory rate, temperature, with options for invasive blood pressure (IBP) and CO2 measurements, ensuring a holistic view of the patient’s physiological status.
- Critical Insights: Delivers accurate, detailed patient data crucial for the effective management of critically ill patients, supporting timely clinical interventions.
Designed for Enhanced Usability
- High-Resolution Touchscreen Display: Features a 12-inch color touchscreen display, offering clear visualization of patient data and trends for easy interpretation.
- Customizable Interface: Allows clinicians to tailor the display layout to their specific monitoring needs, enhancing data accessibility and streamlining workflow.
- Intuitive Operation: Simplified navigation and quick-access controls enable easy adjustment of settings and parameters, facilitating efficient monitoring processes.
Seamless Integration and Efficient Workflow
- Robust Connectivity: Advanced networking capabilities ensure smooth integration with Electronic Medical Records (EMR) and hospital information systems (HIS), facilitating seamless patient data management.
- Workflow Optimization: Enhances documentation accuracy and supports efficient patient care coordination across departments, contributing to improved clinical outcomes.
Built for Durability and Versatility
- Rugged Construction: Engineered to withstand the demands of various healthcare environments, ensuring reliability and longevity.
- Flexible Application: Portable design and battery operation option make it suitable for a wide range of clinical scenarios, ensuring continuous patient monitoring.
Specifications
Dimensions:
- Size: 12.2″ x 11.4″ x 6.7″ (31.0 cm x 28.9 cm x 16.9 cm)
- Weight: 10.6 lb (4.8 Kg)
Power Requirements:
- Line Voltage: 100 to 240 VAC (± 10 %)
- Maximum Current: 2.0 A.
- Frequency: 50/60 Hz (± 3 Hz)
- Battery: Rechargeable lithium-ion battery, 4500mAh. ≥ 4 hours run time
- Recharge Time (Power Off): 5 hours to 90%
Environmental Requirements:
- Temperature
- Operating: 0 to 40 °C (without AG and CO2 module). 10 to 40 °C (with AG and CO2 module)
- Storage: -20 to 60 °C
- Humidity
- Operating: 15 to 95 % (non condensing)
- Storage: 10 to 95 % (non condensing)
- Barometric
- Operating: 427.5 to 805.5 mmHg (57.0 to 107.4 kPa without AG and CO2 module)
- Storage: 120 to 805.5 mmHg (16.0 to 107.4 kPa without AG and CO2 module)
Interfacing:
- Main Unit: AC power connector (1), VGA port (1), USB 2.0 connector (2), Analog output/nurse call/defib. Sync/Serial Port (1), Integrated module rack (1), for 2 slots
- Barcode Scanner: Supports 1D and 2D barcode
- Thermal Recorder: 3 traces (paper 50 mm width, 20 m length)
- Network Printer: Support
